Application

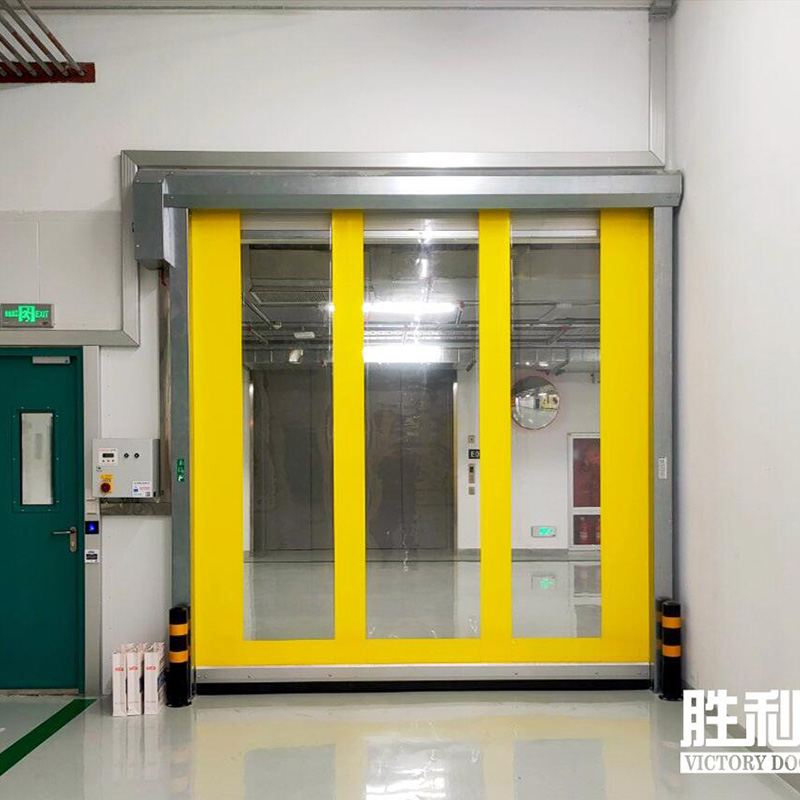

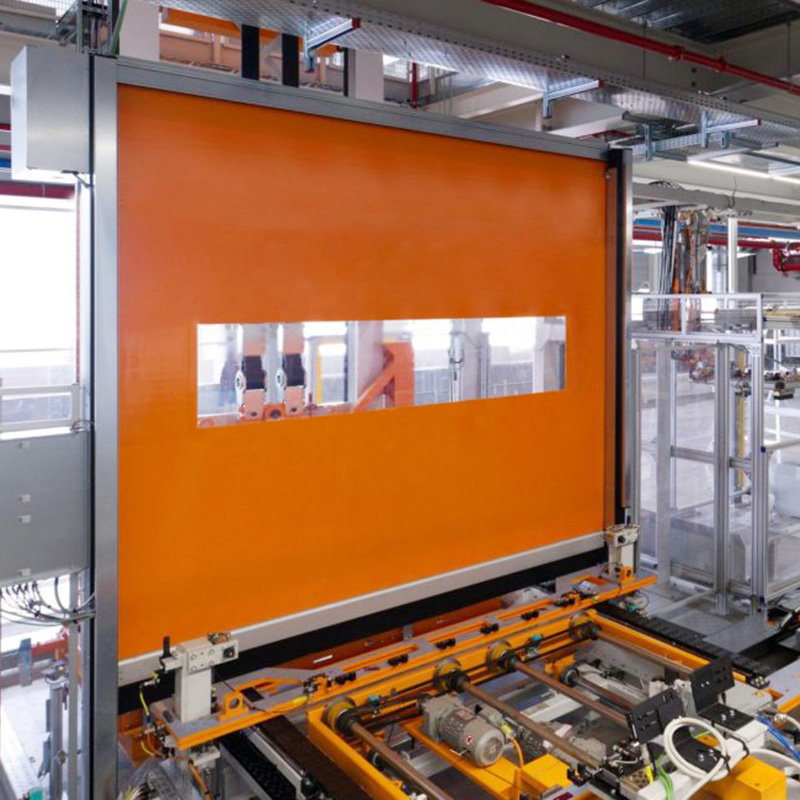

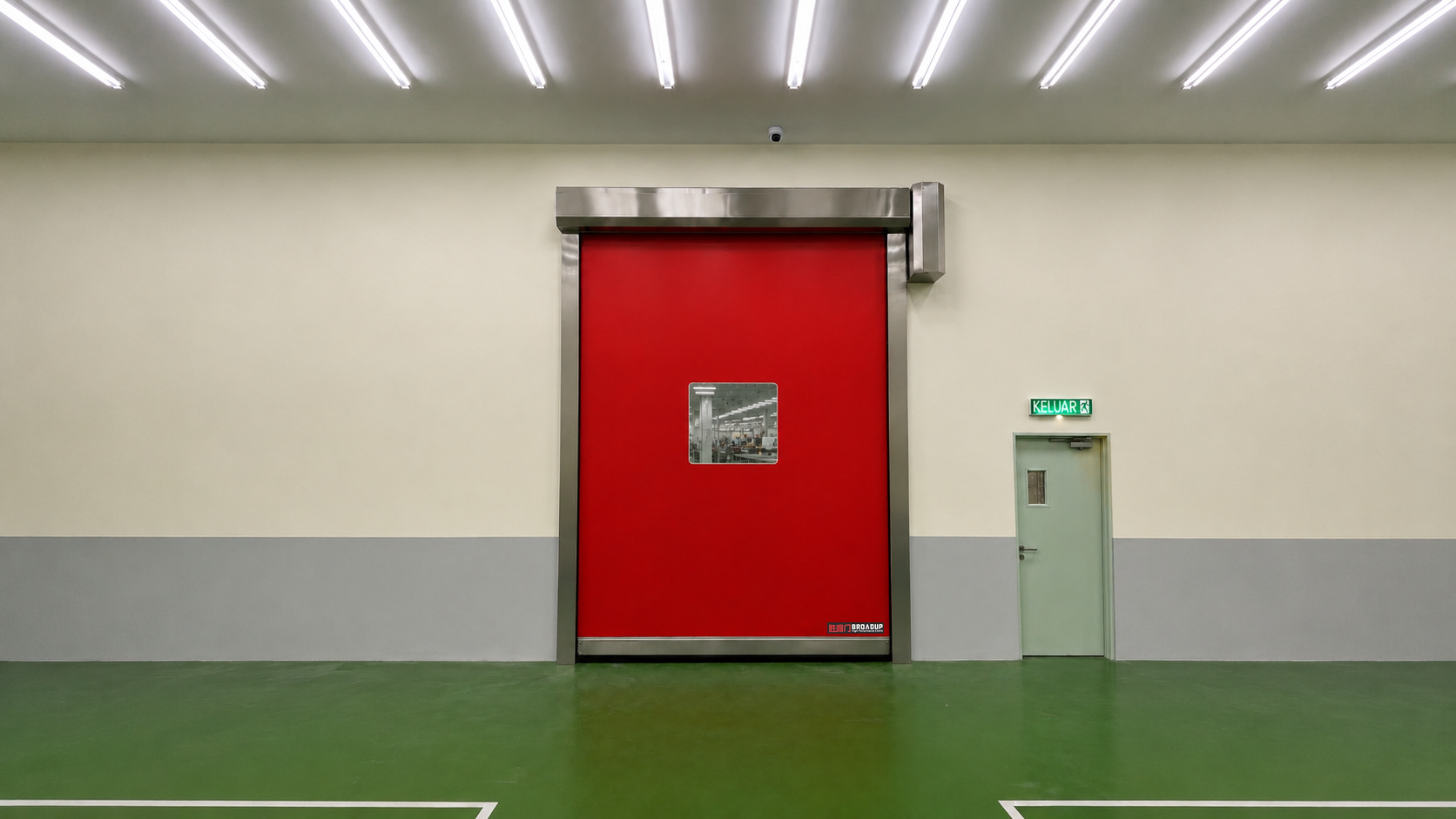

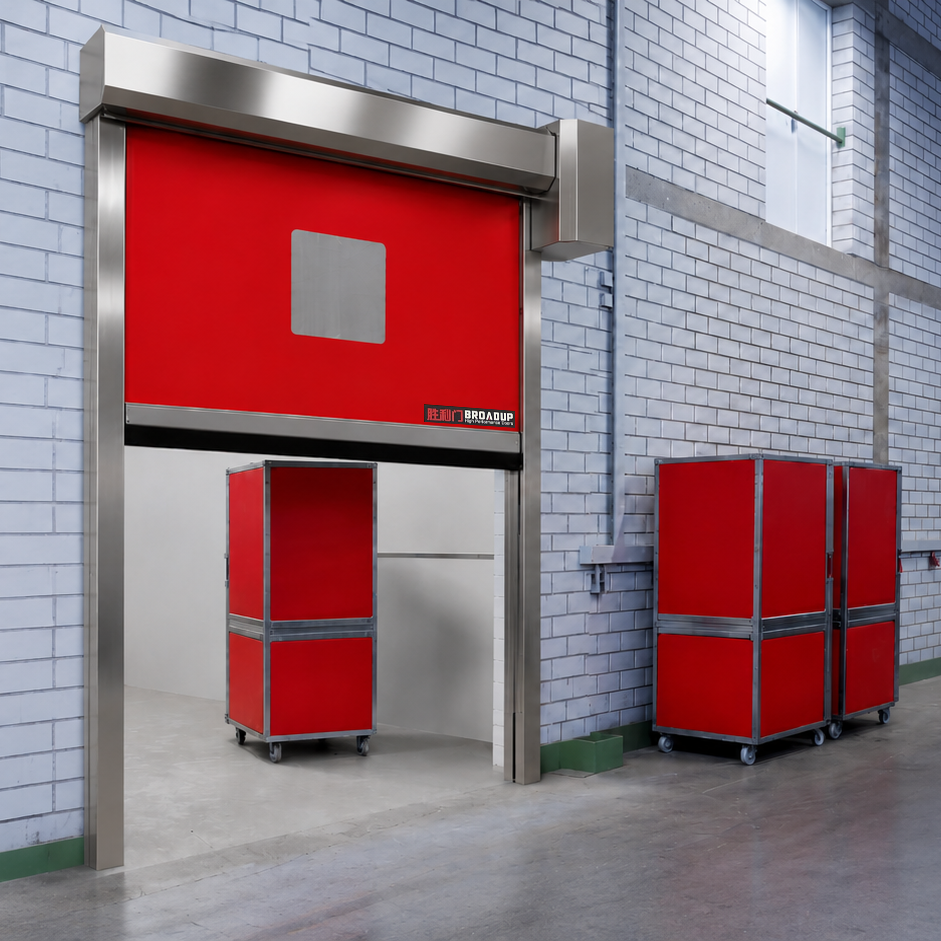

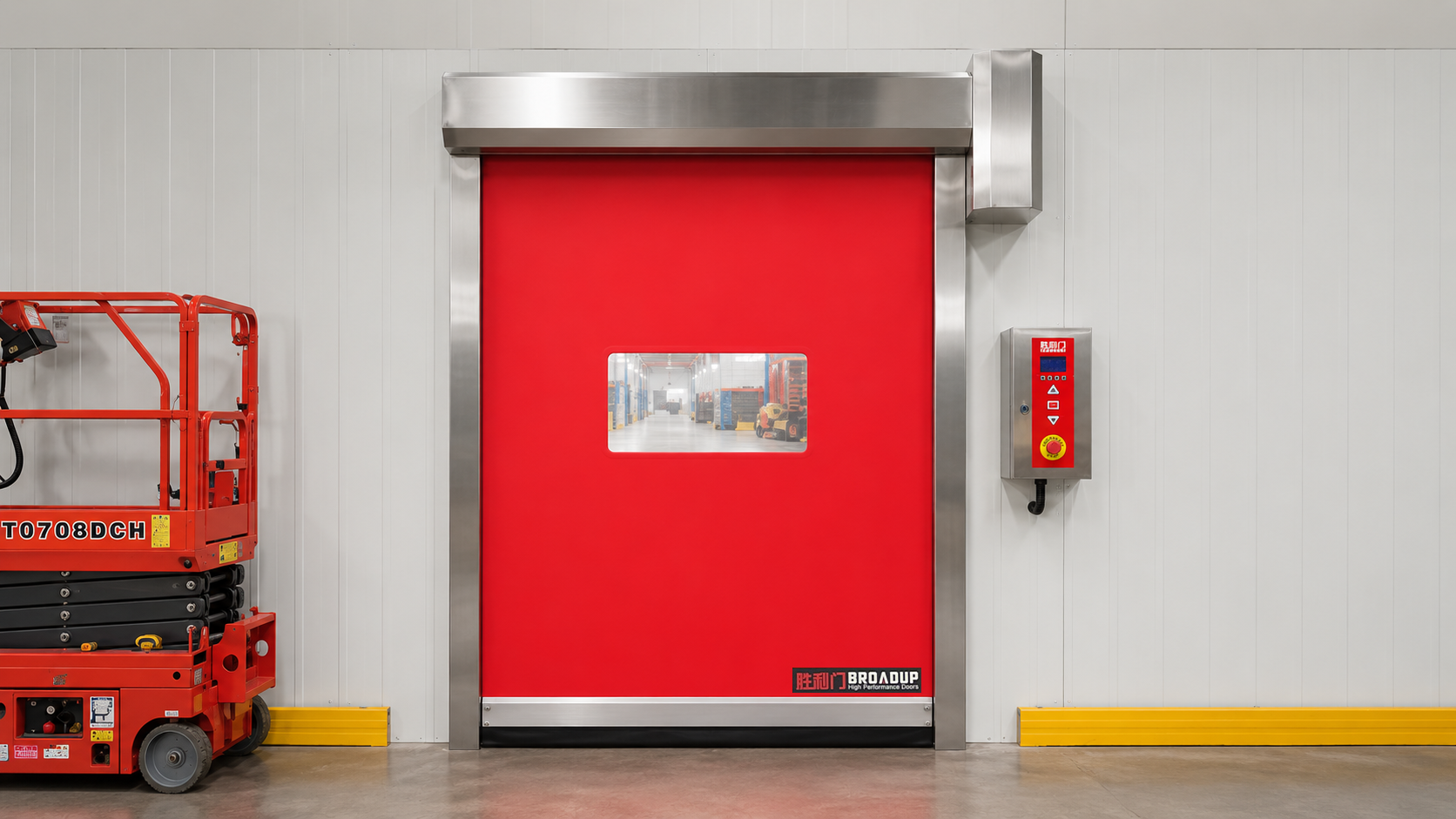

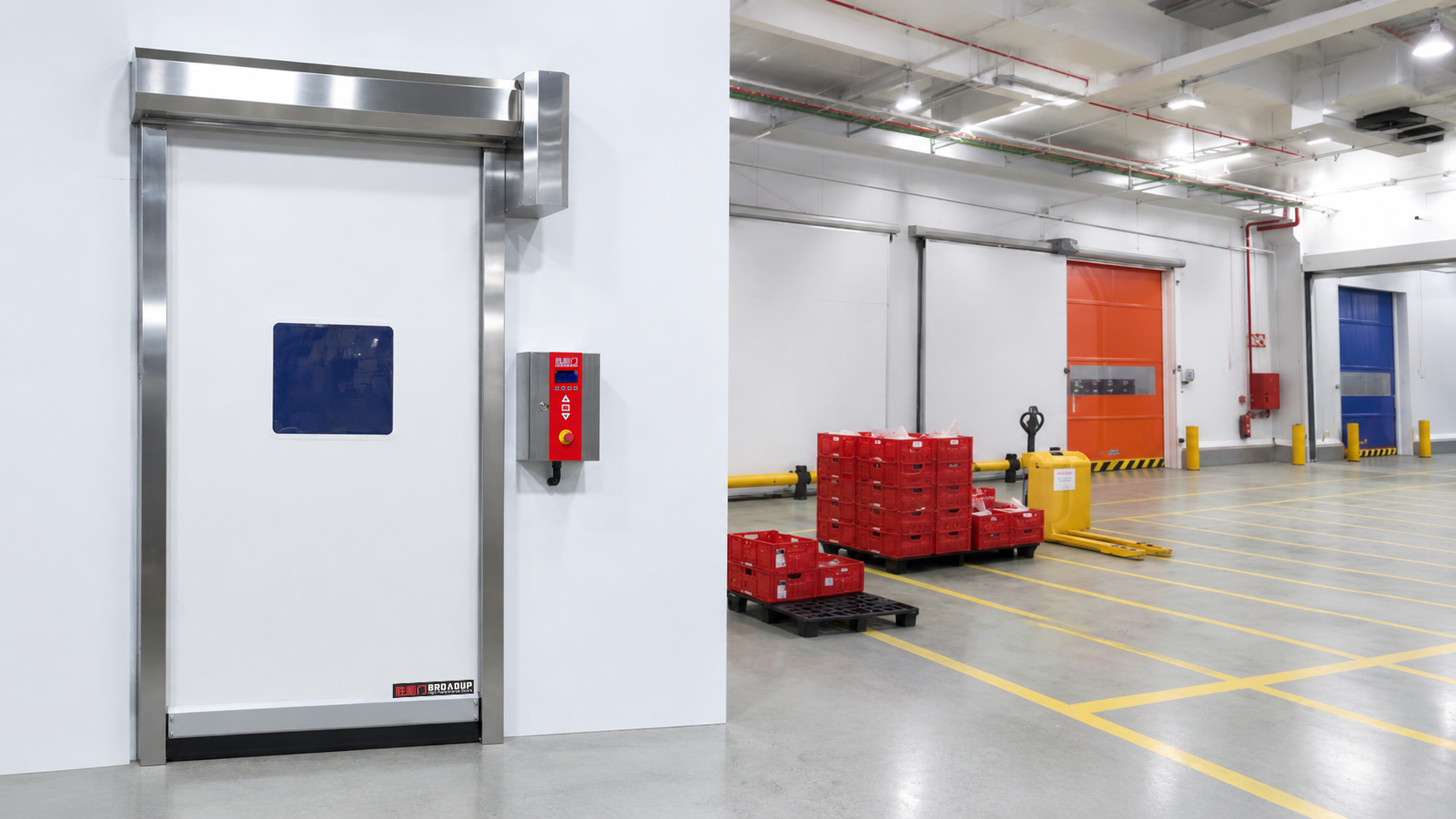

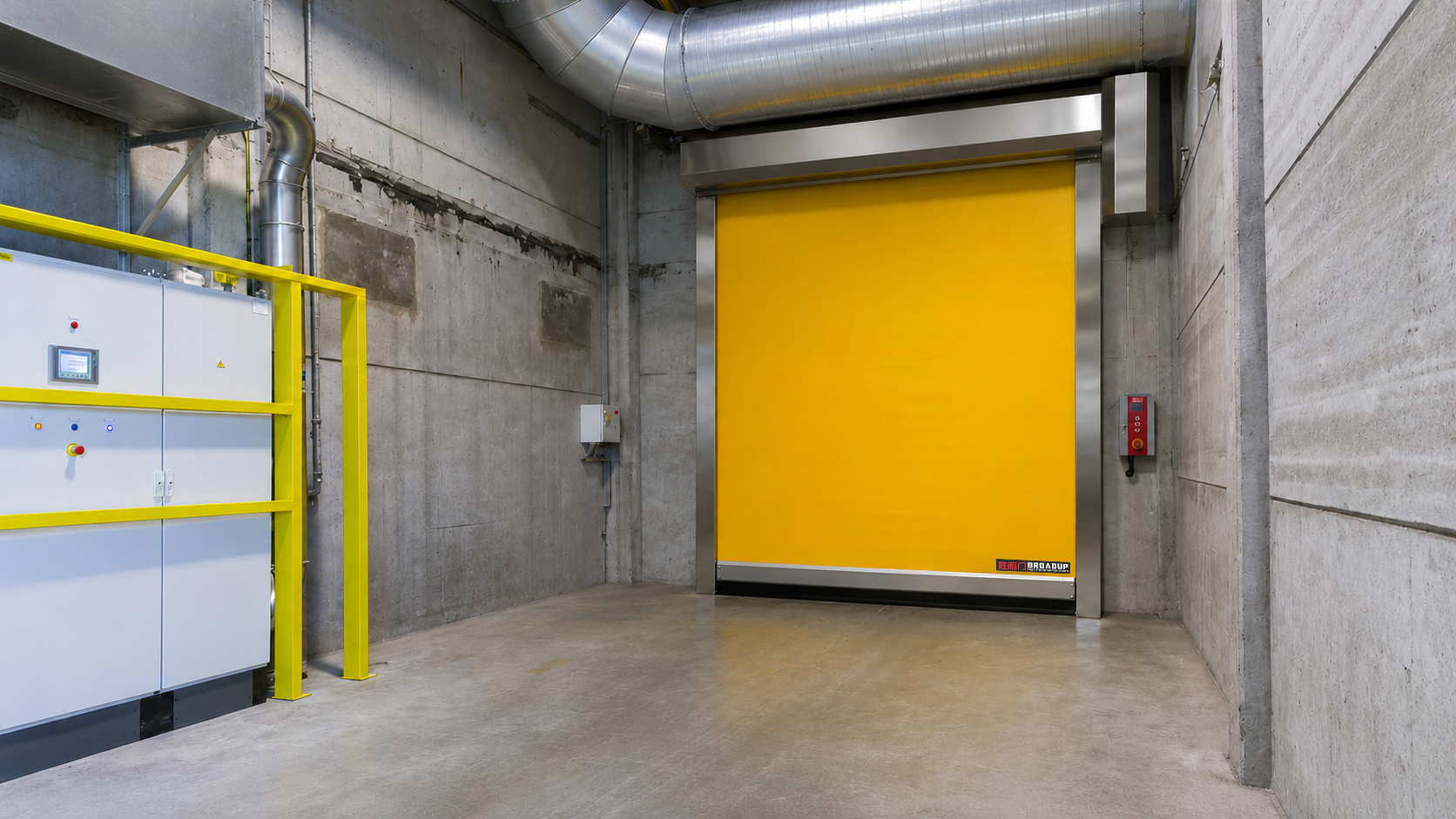

Widely used in air-conditioned workshops and clean plants in various industries such as electronics, machinery, chemicals, textiles, refrigeration, printing, food, automobile assembly, supermarkets, logistics and warehousing.
Product Parameter
Opening speed: 0.8 m/s- 2.5 m/s
Closing speed: 0.5 m/s-0.8 m/s
Opening and closing frequency: >60 cycles/hour
Frame structure: Galvanized steel with powder coated(option: stainless steel)
Door curtain material: Wear-resistant PVC fabric,smooth and beautiful in appearance. yellow, blue, red, etc. can be customized. The yellow color is bright and can play a reminder.Thickness=0.8mm to 1.2mm.
Selection of colors:
Blue: RAL:5002, Yellow: RAL:1003, Gray: RAL:9006
Red: RAL:3002, Orange: RAL:2004, White: RAL:9003

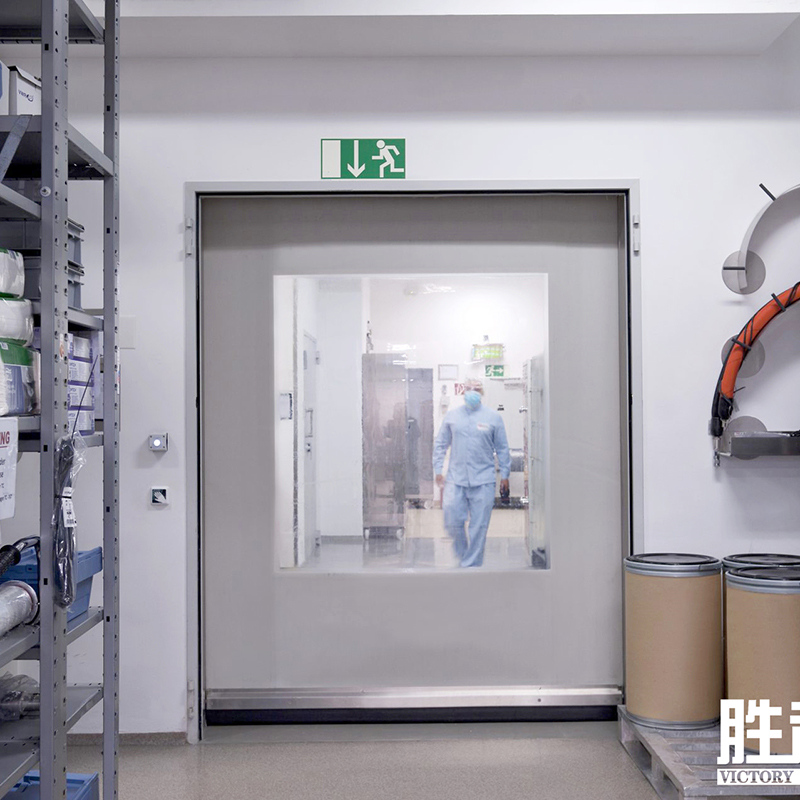

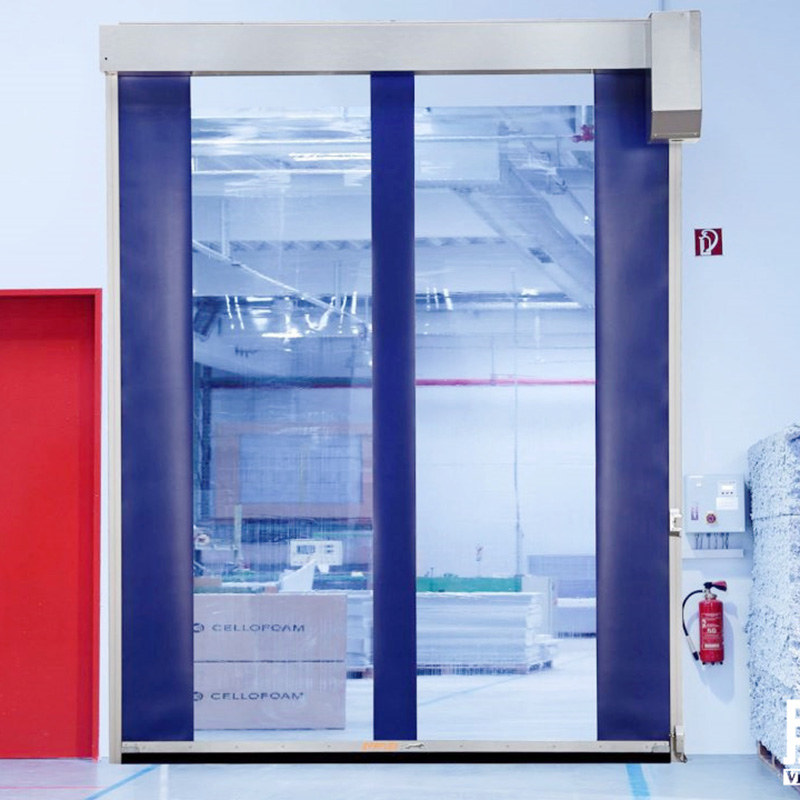

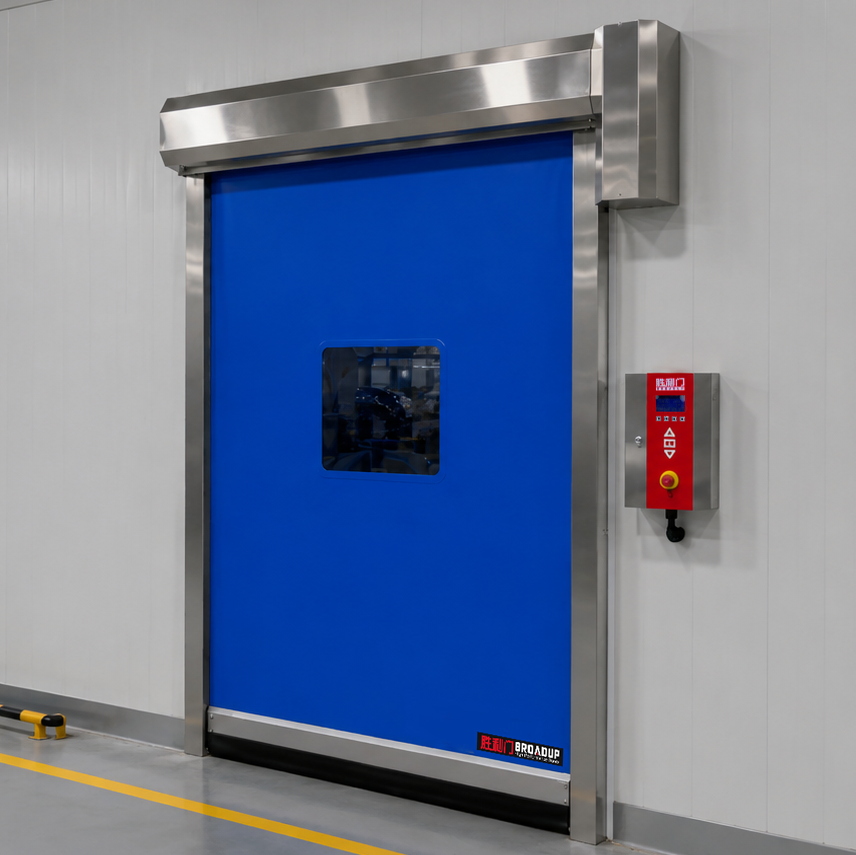

Transparent windows: Transparent windows can be selected to enhance indoor lighting and facilitate observation of work by staff.
Motor: High quality servo system which can operate stably, save energy and save operation.
Control system: Multi-turn absolute value servo system, reducing the position of the door body, the safety protection response is sensitive and fast.
Sealing material: It is sealed with rubber strips to prevent freezing, moisture and water penetration.
Product features
1. High opening and closing speed to allow smooth traffic flows of personnel and material/ equipment
2. Short open time and tight seal reduce air flow to save energy. Protect against bad weather and dust-free
3. Curtain can be replaced separately with low maintenance costs
4. Equipped with safety devices to protect personnel and material/equipment
5. Opening method is double-sided manual button, optional radar, geomagnetism, drawstring, remote control, Bluetooth, wireless switch and etc.
Detail picture
Extractable wind bars
The special structure of the wind bar will reduce maintenance cost when the damaged curtain be replaced separately.
Safety photoelectric
The bottom of the door body is equipped with safety photoelectric. The door will stop falling automatically when objects or people pass through the safety photoelectric infrared light to avoid hitting pedestrians or objects.
Door curtain
The door curtain was made of high strength industrial base cloth ,high density base yarn polyester PVDF coated polyester mesh band and streamlined glass fiber reinforces polyester.
Installation diagram
Installation space requirements:
Top space: ≥1100 mm +50 mm (for installation space)
Motor side space: ≥ 390 mm +50 mm (for installation space)
Non-motor side space: ≥ 130 mm + 50 mm (for installation space)
Installation requirements:
Before installation, the wall shall be firm and flat to withstand wind loads and impact forces
The door has been assembled in the factory as much as possible to ensure convenient and fast installation on-site.
