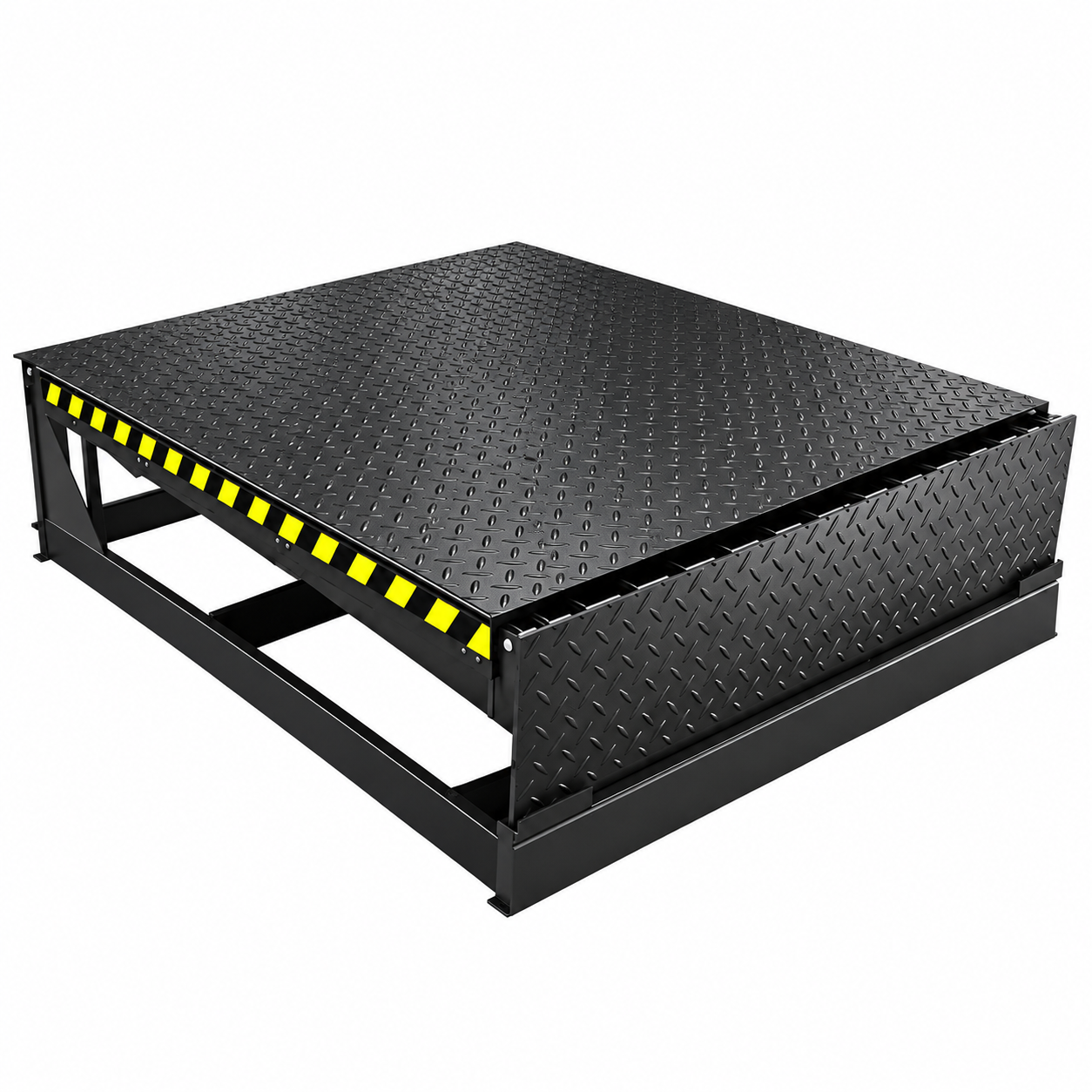

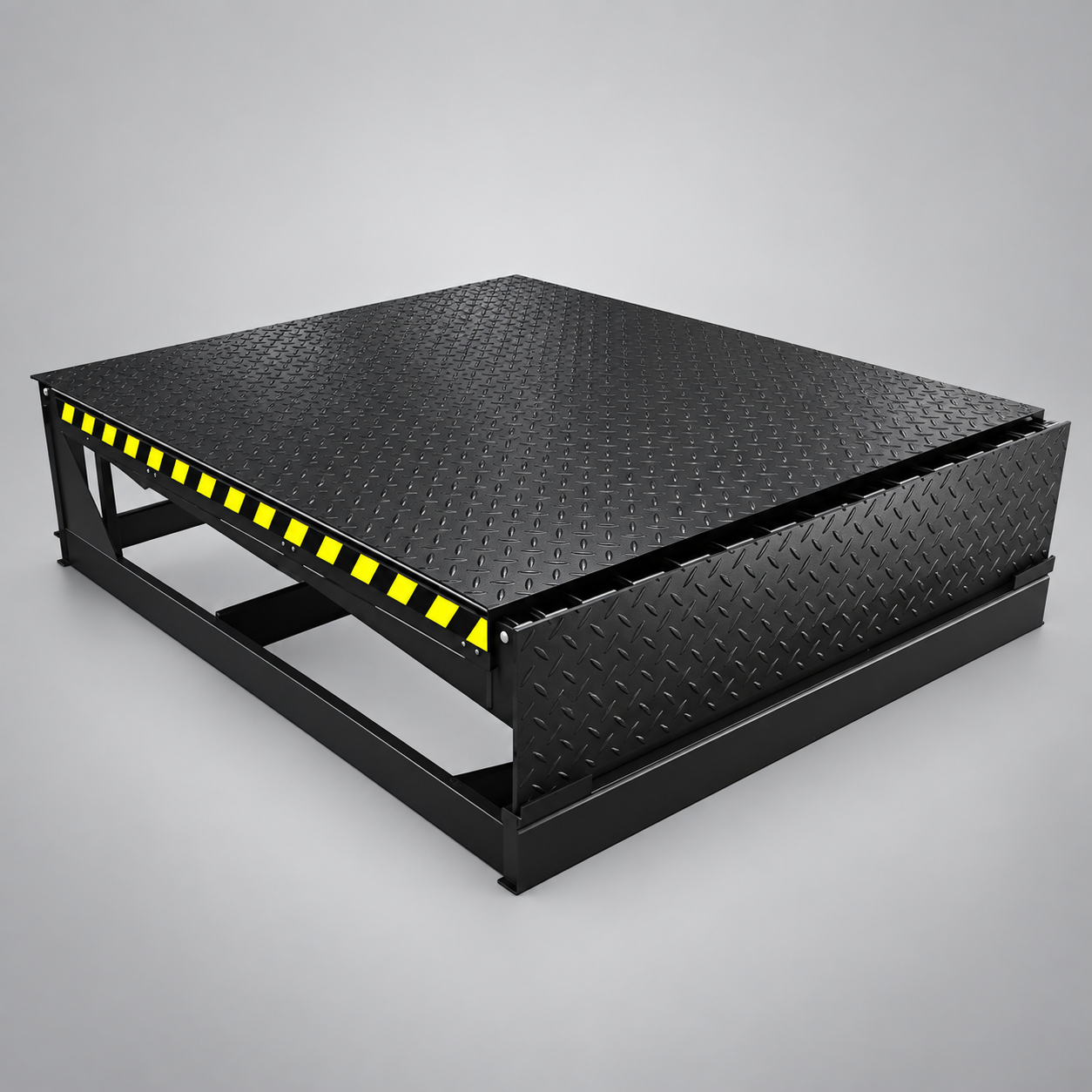

Hinged Lip Dock Leveler

The hinged lip dock leveler effectively compensates for the height difference between the truck bed and the dock, forming a transition bridge between them. It offers simple operation, a wide adjustment range, low failure rate, and convenient maintenance.

Brand VICTORY

product details

Application

For dock leveler product applications include industrial warehouses, logistics centers, freight stations, docks and other places. These devices are often used to connect the loading and unloading of goods between trucks and warehouses, providing safe and efficient cargo loading and unloading channels.

Product Parameter

Application	Indoors & outdoors
Width(mm)	1800/2000/2200
Height(mm)	500/600
Depth (mm)	2000/2500/3000/3500/4000/4500
Height adjustment (mm)	lifting: 550 lowering: 350
Power	electro-hydraulic
Motor	3 phase/380V/50Hz/1.1KW/ IP rating: IP55
Loading Capacity (T)	8T (dynamic)/10T (static)
Platform thickness (mm)	8
Lip thickness （mm)	16
Curtain colors	RAL 7004 RAL 9005 RAL 5005
Recommended operating temperature	-20℃ up to +50℃

Product features

Borax treatment on steel surface.

Using baking varnish technology, good corrosion resistance.

The distance between the ramp channel and the front beam (25mm) provides effective safety protection.

The connecting hinge between the platform and the entrance channel has the ability of self-purification.

The length of the entrance slope can be adjusted to provide a more convenient application.

The entrance channel support is very firm and can provide safe lateral movement on the platform in the closed state.

The airbag of the side curtain can prevent the maintenance personnel from stepping into the gap between the platform and the sink when working, which has a good protective effect.
