V115 series High-Speed Door
Food Beverage

V115 series High-Speed Door

The V115 High-Speed Roll-Up Door is an economical rapid door solution developed by Victory Door for general industrial applications, integrating high-speed operation, reliable safety, and easy maintenance. Featuring a modular "curtain + window" segmented design, damaged sections can be replaced individually without removing the entire door, significantly reducing maintenance costs. With an opening speed of up to 1.0 m/s, it effectively enhances logistics and production workflow efficiency. Equipped with high-sensitivity safety photocell sensors as standard, the door immediately stops or reverses upon detecting obstacles, ensuring optimal safety for personnel and vehicles. The integrated compact structure combined with high-strength materials ensures stable and durable performance even under high-frequency use. Optional transparent windows provide both segregation and visibility as needed. Widely used in logistics warehouses, production workshops, and general industrial plants requiring frequent rapid opening and closing, the V115 delivers a cost-effective high-speed access solution backed by Victory Door's direct manufacturing expertise and European-standard quality.

  • Brand VICTORY

Application

Fast Speed Zipper Door is suitable for medium-sized internal/external departments and high-frequency logistics channels. It adopts all-soft curtains without any metal objects, which can separate different temperature zones, prevent air convection, and ensure indoor constant temperature, insect and dust prevention.

Product Parameter

Max size

 4500mm X 4500mm

opening speed

 1.5m/s(adjustable)

closing speed

 0.8m/s(adjustable)

Curtain

 1.2mm thick fabric

Door frame

 304 stainless steel or aluminum alloy

Motor

 Servo motor,over 1.5 million times use

Power

 220v,075kw , 50Hz. (Transformers are available)

Protection

 IP 54

Advantage

Noiseless/Durable/Collision avoidance/Automatic reset

Product features

The conventional features of Stainless Steel Zipper High Speed Door include:
1. Reset: automatic reset function to prevent collision and accidental derailment (patented technology).
2. Chain buckle:Zipper lock structure, high airtight performance; full soft door body, safer.
3. High speed: the servo motor is specially customized and the opening speed can be as high as 2.0m/s, and the high-frequency production line is also applicable.
4. Wind resistance:The door frame track is equipped with a tension spring tension system which is conventionally resistant to 6-8 levels of wind pressure, and can be strengthened by special orders
5. High frequency: The number of runs is up to 1 million or more
6. Safety: Standard safety photoelectric and bottom airbag, optional safety light curtain.
7. Superior seal:In closed position every door curtain is about 3-4cm from the lintel, there is no gap between the side guides and the door curtain(energy saving).
8. Self-repairing: Automatic reset function to prevent collision and accidental derailment.

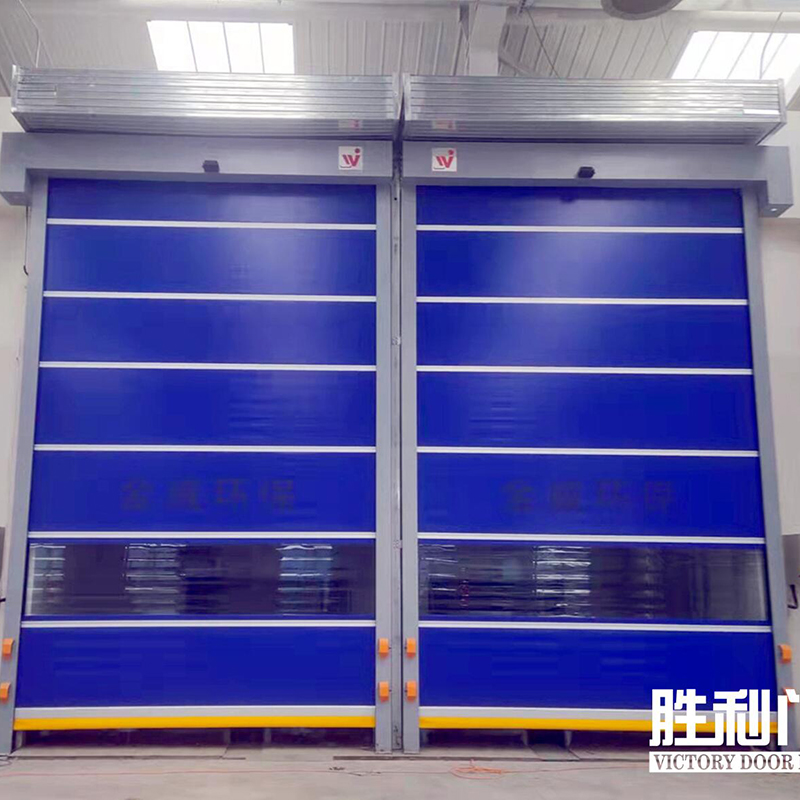

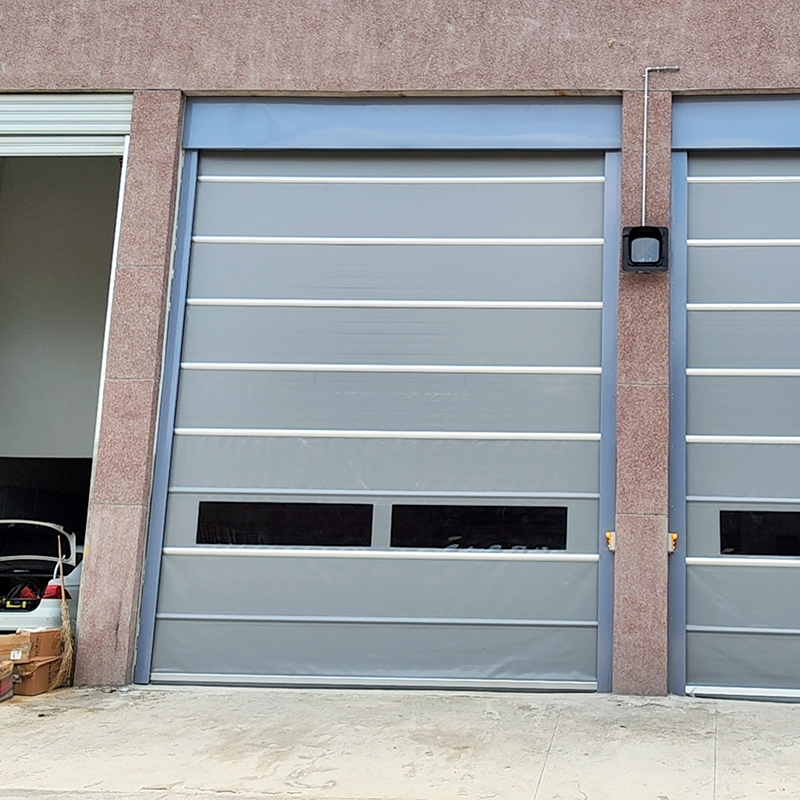

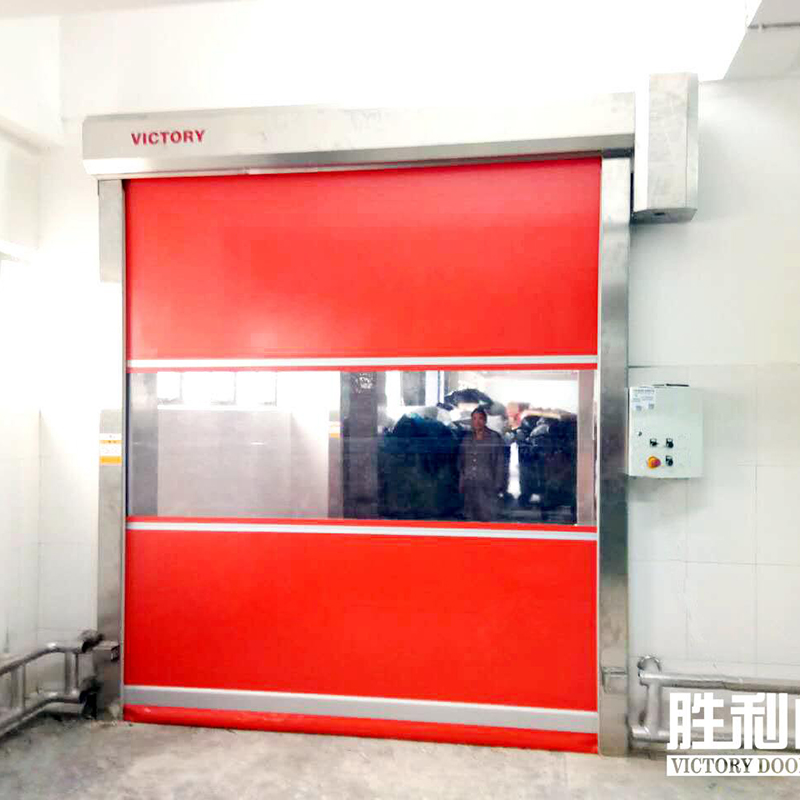

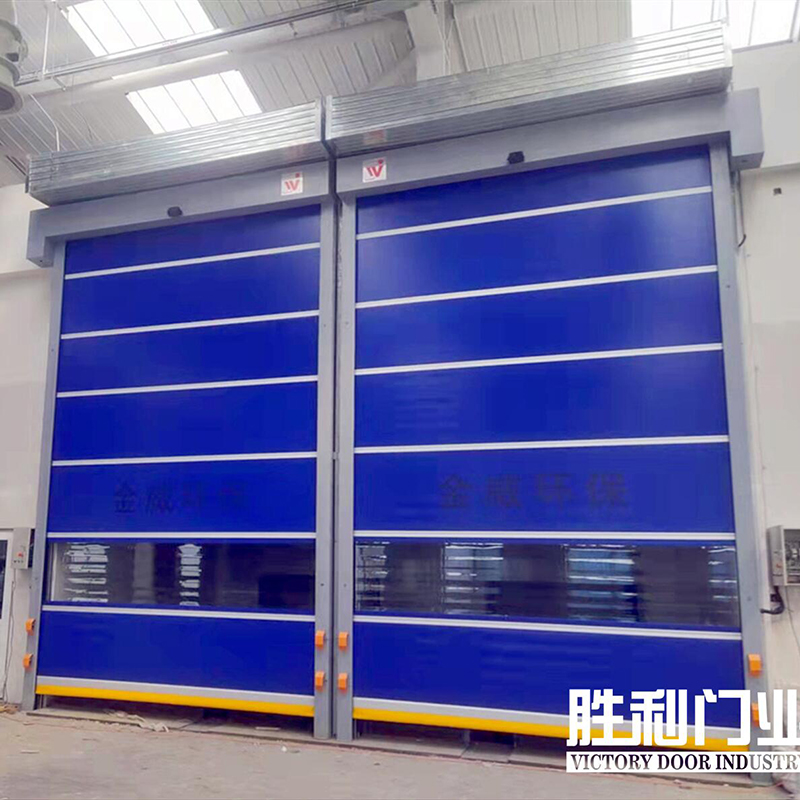

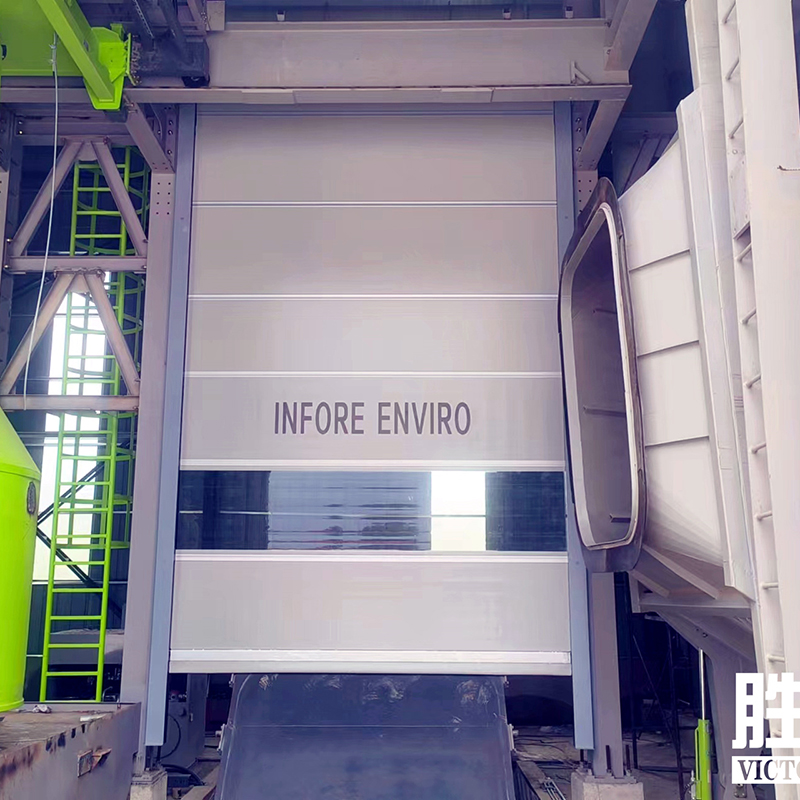

Detail picture

D-311-cleanroom-illustration-1x1_1x1(1)khvD-311-cleanroom-illustration4-1x1_1x1(1)sjrsd1xoj
