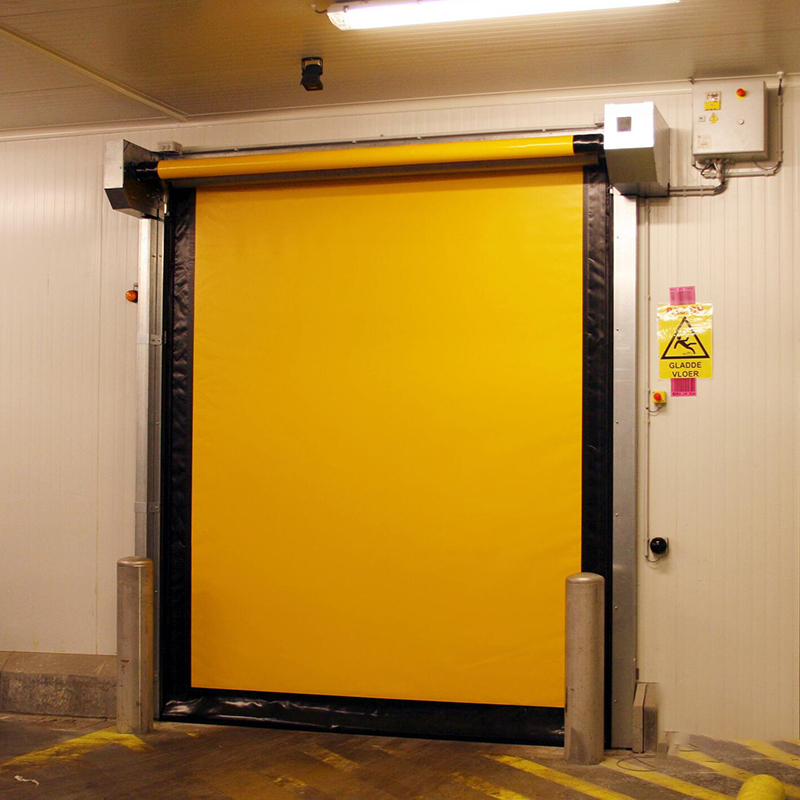

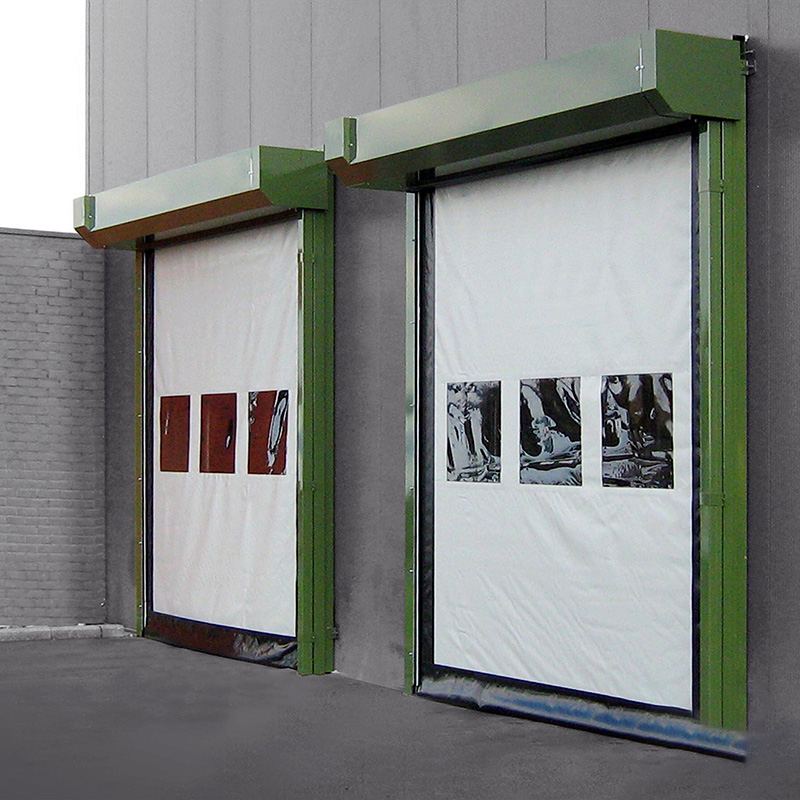

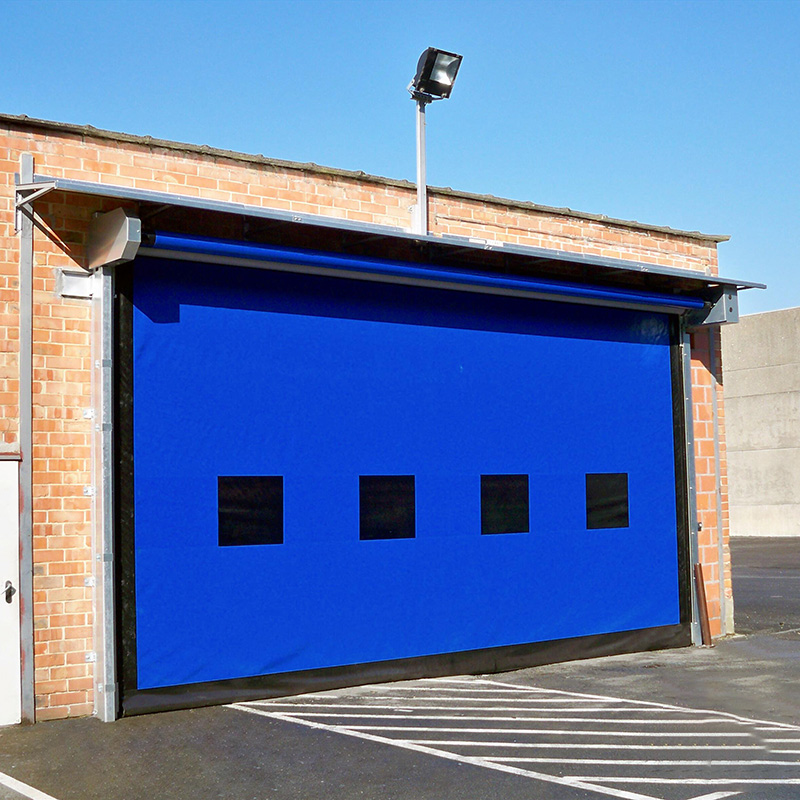

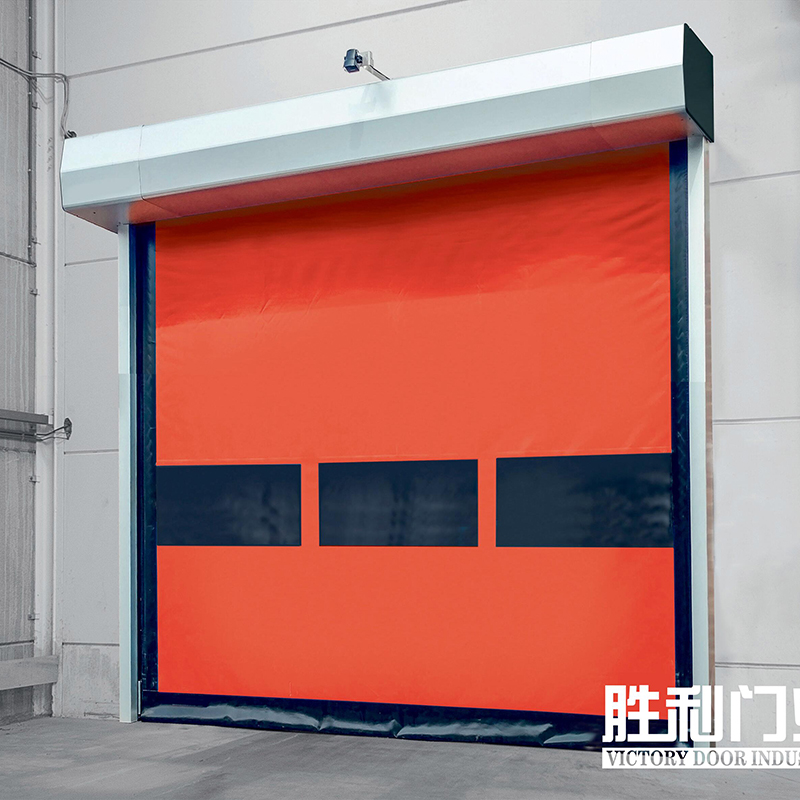

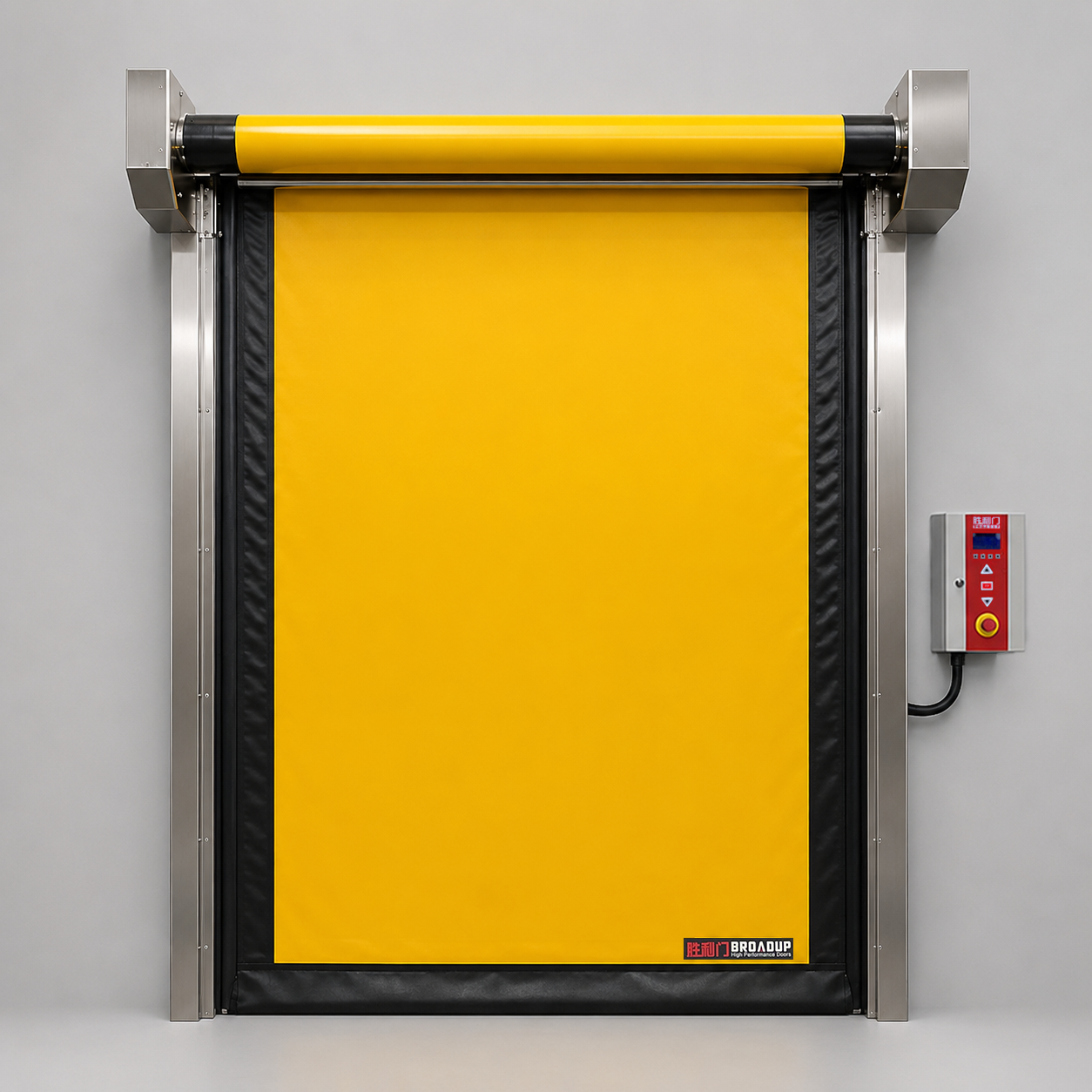

T202 series High-Speed Door

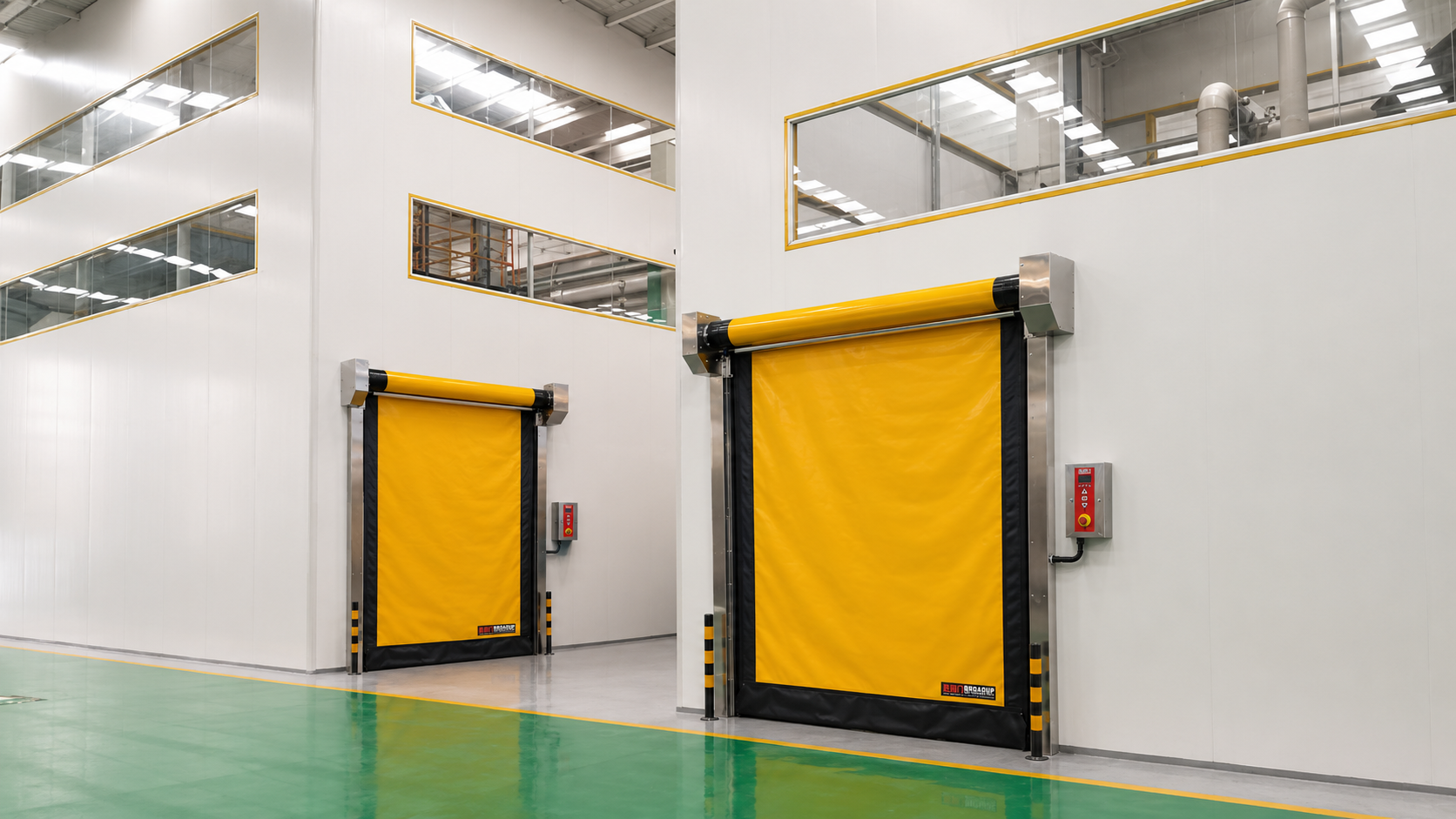

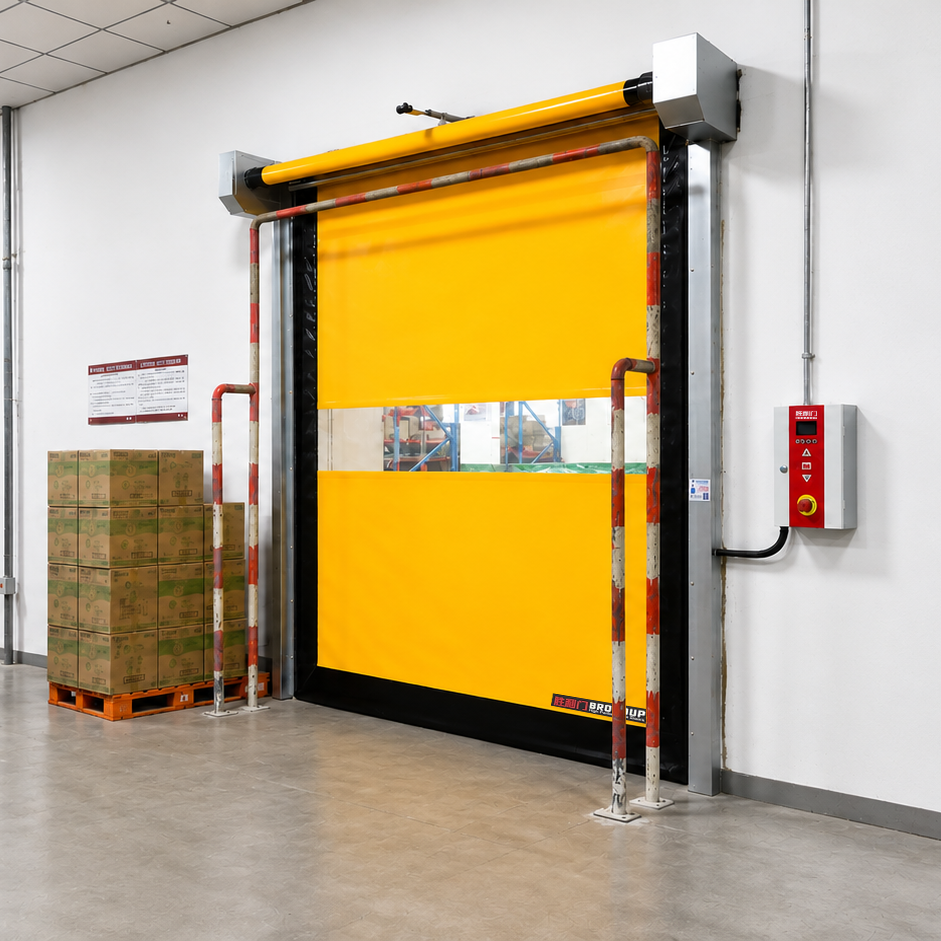

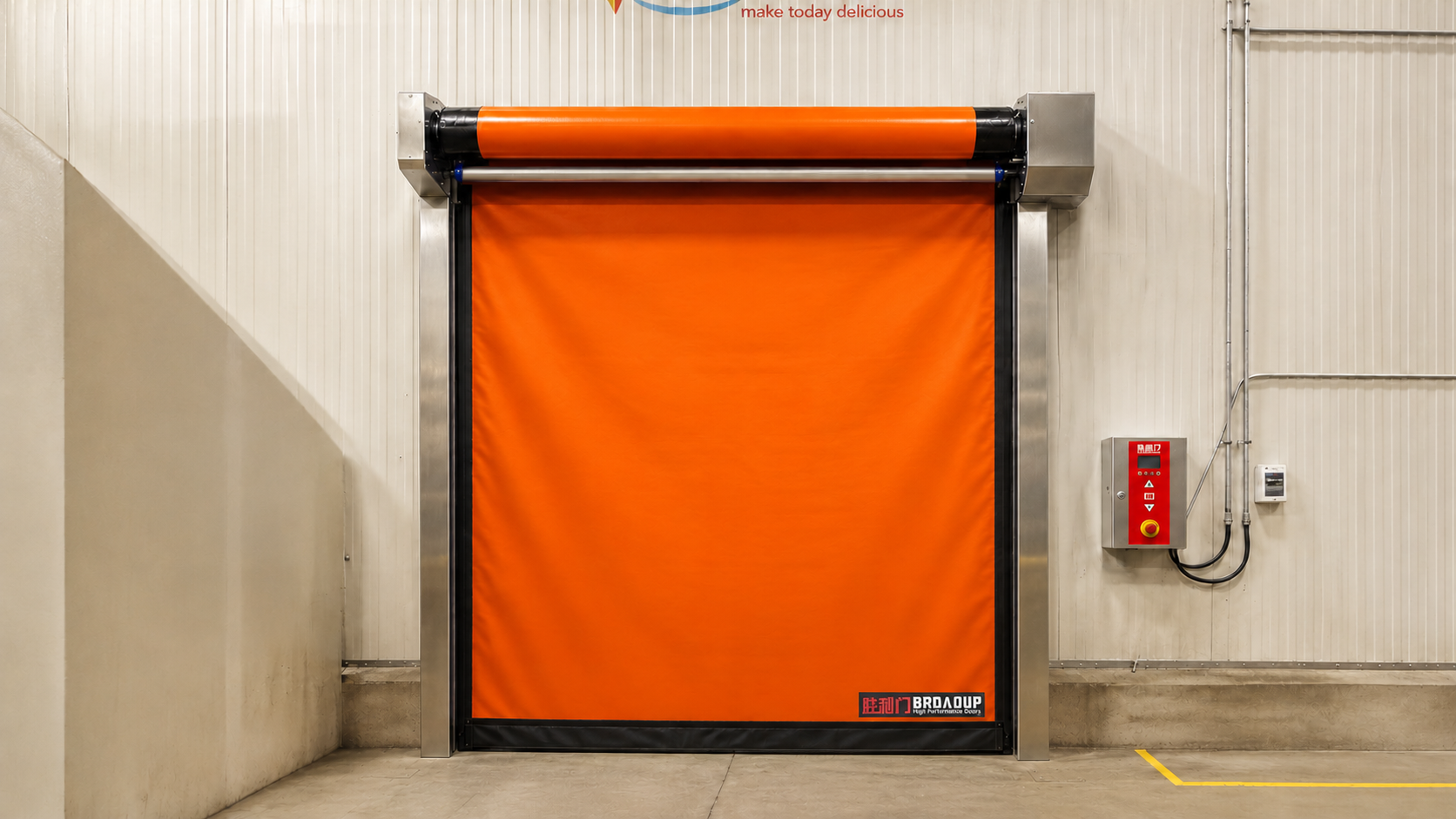

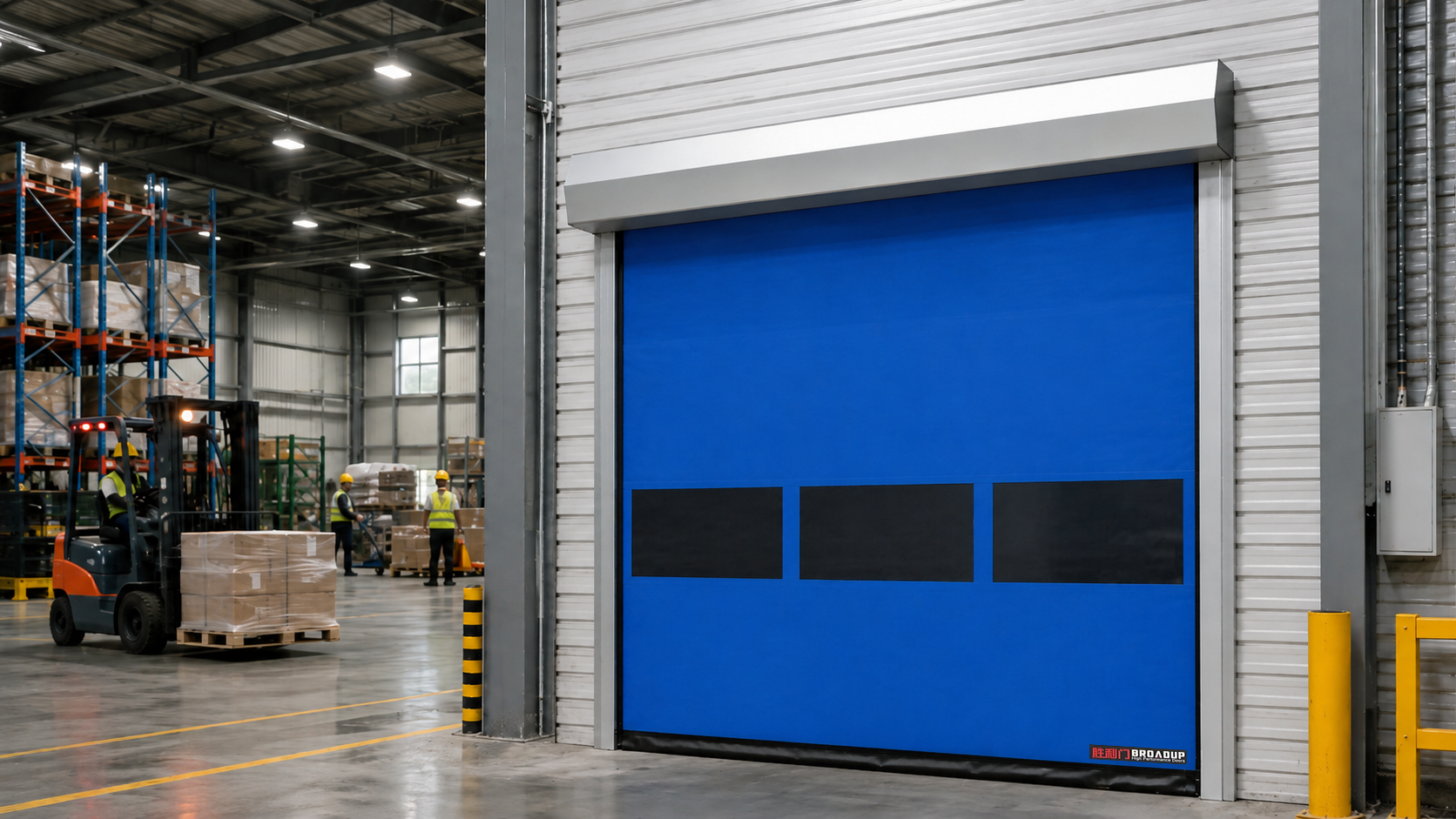

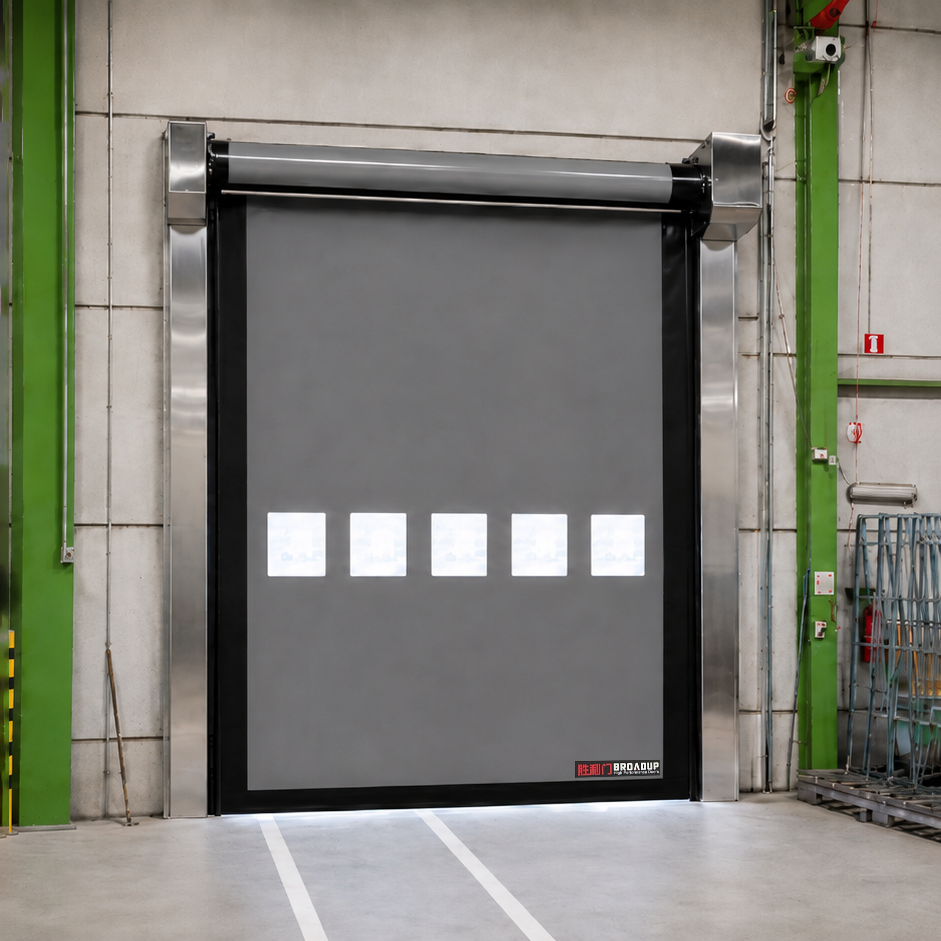

The T202 is a high-performance cold storage door developed by Victory Door based on dual-shaft rolling technology, featuring a fundamental mechanical difference from the traditional V115 series. It adopts a dual-shaft synchronized drive structure combined with a specially designed stability kit, allowing the motor to operate at higher power for faster curtain lifting, achieving extremely rapid opening and closing speeds while maintaining smooth, vibration-free operation. The door frame integrates a self-repair function that automatically resets in case of accidental derailment, ensuring operational continuity. In terms of airtightness, the T202 utilizes precision engineering and high-sealing materials to deliver performance close to that of the D660/D668/D669 Cleanroom Door series, effectively locking in cold air and maintaining pressure differentials. Designed for high-frequency traffic and demanding temperature-controlled environments, the T202 is an ideal choice for cold chain logistics, food processing, and pharmaceutical warehousing applications requiring both speed and superior sealing.

    Contact Us Email Whatsapp
    product details

    Product features

    1. Use special  servo motor and reducer, 220V/0.75-1.5KW. Protection class IP54.
    2. Servo drive system, integrated microcomputer controller,  automatic faults self-monitoring. . Power supply 220V, power0.75- 1.5KW. Protection class IP54.Servo high-performance control box, with digital display, with soft start, slow stop function, thus greatly extending the life of the motor.
    3. The opening speed 1.0-1.5m/s and the closing speed 0.8-1.0m/s(optional).
    4. Guide rail: aluminum alloy guide rail, galvanized steel/ stainless steel （optional）cover.
    5. Push-Pull gear driven technology: stainless steel drive shaft, dual-axis design can make the door body in the opening and closing process to maintain a more stable operation, reduce the friction resistance of the door body operation, reduce energy consumption, improve the overall opening and closing speed.
    6. Motor cover: galvanized steel/ stainless steel （optional）; The door head box: galvanized steel/ stainless steel(optional)
    7. Door curtain::0.8-2.5mm thick weaved fabric/PVC
    8. Wind resistance: Wind resistance of 300-450pa.
    9. Sealing performance: the patented side slide makes the door curtain zipper closely combined with it, completely eliminating the generation of gaps. In the design to achieve a real sense of sealing, to eliminate the inflow and outflow of air. Reduce heat loss for energy savings, while eliminating traditional blade and brush sealing systems.
    10. Safety protection: Infrared barrier, Flexible curtain without rigid elements., absolute soft bottom edge to ensure the complete safety of high-speed door.
    11. Passive safety protection: soft bottom without any hard metal,  Crash forgiving and Self-reinserting without intervention-The curtain automatically reinserts itself when dislodged. No repair costs, no production down time.
    12. Opening mode: button switch (optional opening mode of radar, geomagnetic, rope, etc.
