Gas-tight door of cleanroom
High Speed PVC Door

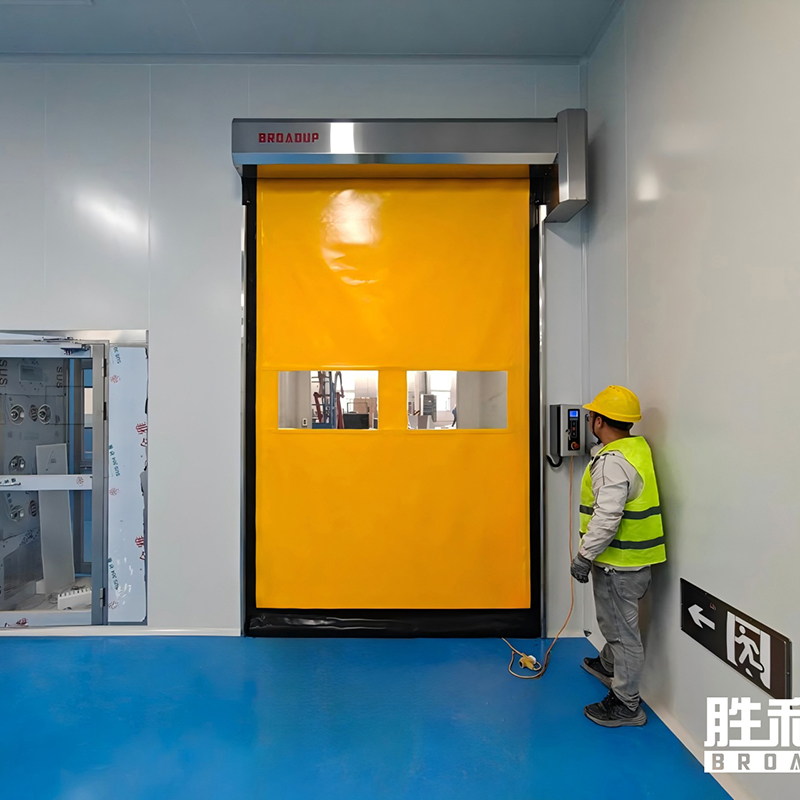

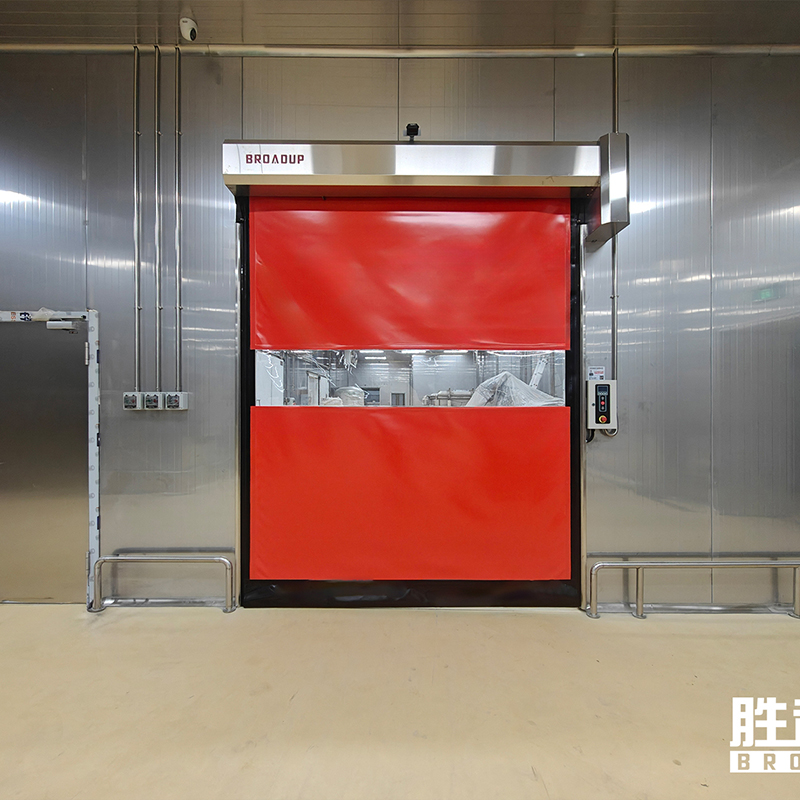

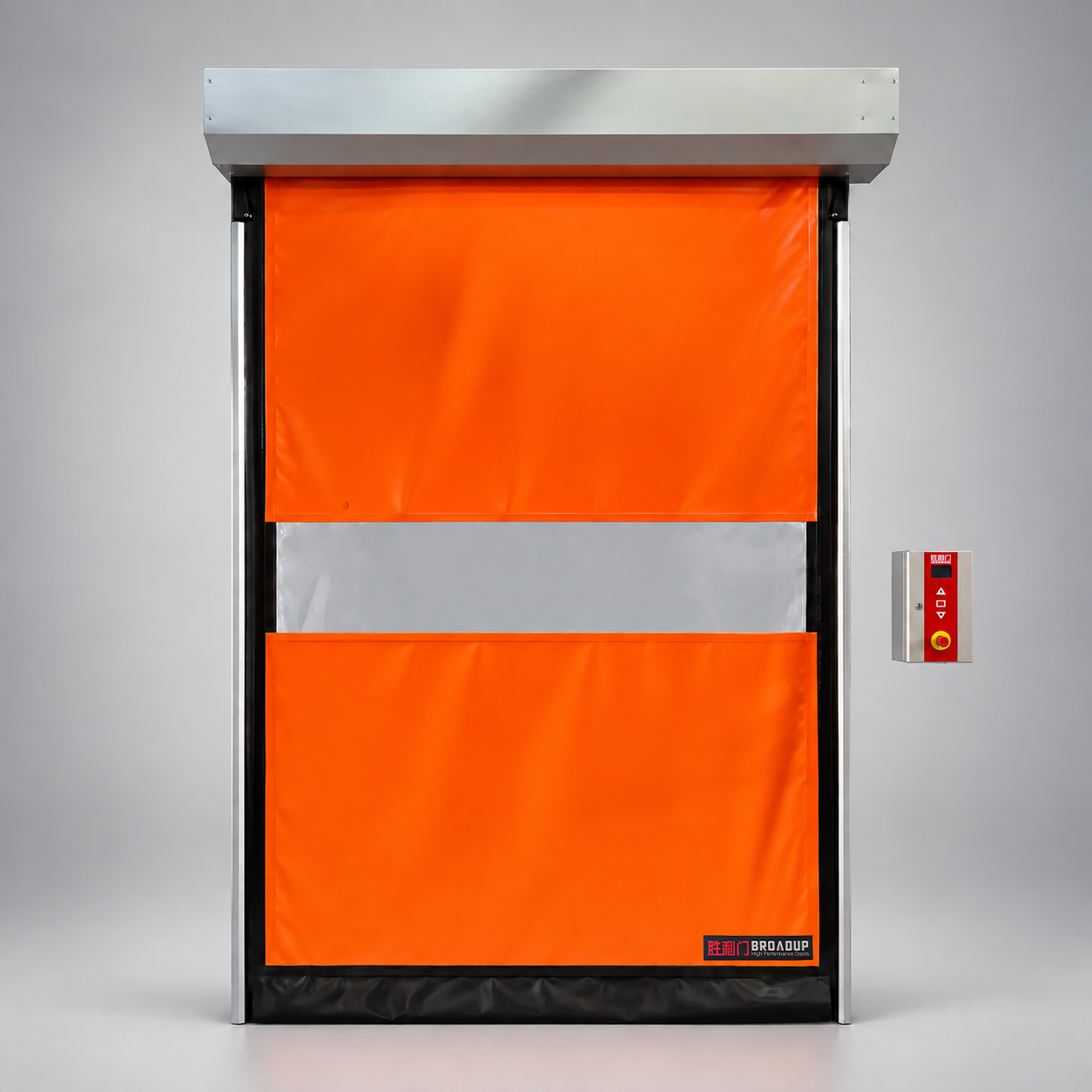

Gas-tight door of cleanroom

Gas-tight door of cleanroom is a fast-rolling shutter door that can be automatically reinserts and designed to isolate sterile overpressure environments Due to its gas tightness, it can ensure controling pressure difference , so that the volume of the ventilation/air cleaning system can be correctly determined, due to its special compact structure and special sliding system, its air permeability is very low, so it is suitable for pressure controlled environment 0-50pa European standard gas tightness class B at standard size. Wind resistance positive and negative pressure 300pa test according to BS EN1026:2016, BSEN12207:2016, BSEN12211:2016. There is no horizontal metal components of the door curtain to ensure the safety of workers and vehicles, The curtain automatically reinserts itself when dislodged. No rebair costs.no production down time.

    PRODUCT PARAMETERS

    size(mm): W2000xH2500(customized according to customer requirements)
    thickness of door curtain(mm) : 0.8-2.5(optional)
    color : yellow,Orange,blue,White,Grey,Red(optional)
    thickness and material of door frame(mm): Structure-Aluminium alloy 3.5mm, Covers-1.2 mm thickness stainless steel (optional)
    thickness of The door head box (mm) : 1.2
    Side panel of door head compartment’s thickness(mm) : 3
    thickness of the motor cover(mm) : 1.2
    Wind permeability 50pz  m³/(㎡·h): Class 3(overpressure)  Class 1(underpressure) ,
    level of wind resistance (pa): 300
    opening speed (m/s): 0.8-2.0 about opening 500-800times every day.
    Power (kw): 0.75-1.5
    Voltage: 220V 50Hz(customized according to customer’s country)
    Machine dimension (L*W*H/mm): 2850*800*500
    Machine weight(kg): 350
    Protection grade: IP54
    Motor brand: POWEVER/SEW(optional)
    Zipper brand: Victory
    Structure : Zipper /Polymer material/Lateral driving strap (optional)
