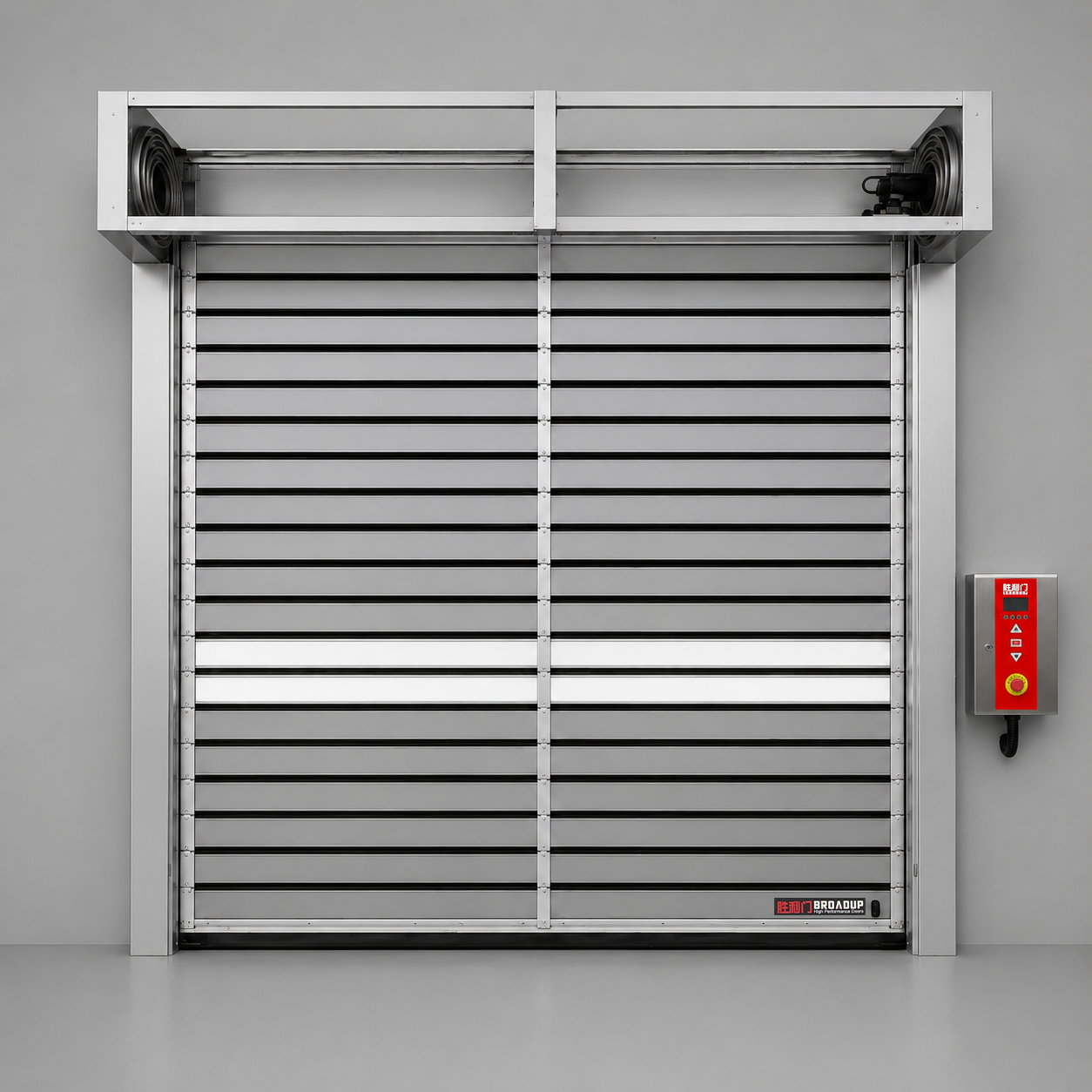

P720 High-Speed Spiral Door

The P720 is the flagship model of Victory Door's rigid high-speed door series, featuring advanced spiral lifting technology and strictly adhering to German engineering standards.

The door panels consist of aluminum alloy with polyurethane foam insulation, available in standard thicknesses of 40mm and 80mm for high strength and thermal efficiency. Custom thicknesses of 27mm are also available to meet specific project requirements.

As a rigid door, its wind resistance is inherently superior to that of flexible doors, making it ideal for demanding environments such as ports and coastal areas.

The core drive system utilizes a dual-track guide design, ensuring exceptional stability during operation while achieving an opening speed of up to almost 3 meters per second—the fastest among all Victory Door products.

Brand VICTORY

product details

Application

High Speed Spiral Door is a new brand metal rapid industrial door with anti-theft,save energy,good sealing,high efficiency,anti-wind. The standard door opening method is double-sided manual button, optional radar, geomagnetism, drawstring, remote control, Bluetooth, wireless switch and etc.

Product Parameter

Open speed: 1.2-2.3m/s

Drive motor: Servo motor

Control system: Servo control system

Door structure: aluminum alloy door panel, rubber seal strip and etc.

Infrared photoelectric, light screen

High safety: at the end of the buffer.

Selection of colors

Blue: RAL:5002, Yellow: RAL:1003, Gray: RAL:9006

Red: RAL:3002, Orange: RAL:2004, White: RAL:9003

Product features

Thermal insulation

Turbo structure

Strong wind resistance

Servo drive

Fast opening and closing

Infrared protection

Oval spiral track configuration for high-speed rigid doors with limited headroom

Compact circular spiral track system for high-speed rigid industrial doors

Large-radius spiral track configuration for high-speed rigid doors

Installation diagram

The blade operation design of the high speed spiral door is unique. The design combines high opening speed, long life and high efficiency.

Unparalleled speed:

The spiral door technology makes the spiral door have a super high opening speed, and no door with similar performance is faster than its speed.

Excellent thermal insulation performance:

The door panel is made of double-layer stretched aluminum plate, the surface is pressed stripe, the middle bridge is connected and the polyurethane foam is filled, which can achieve very good insulation effect.

High security:

Safety is particularly important at high speed, in terms of safety, high-speed spiral doors also play a pioneering role, multiple safety devices to protect people and things from injury.
